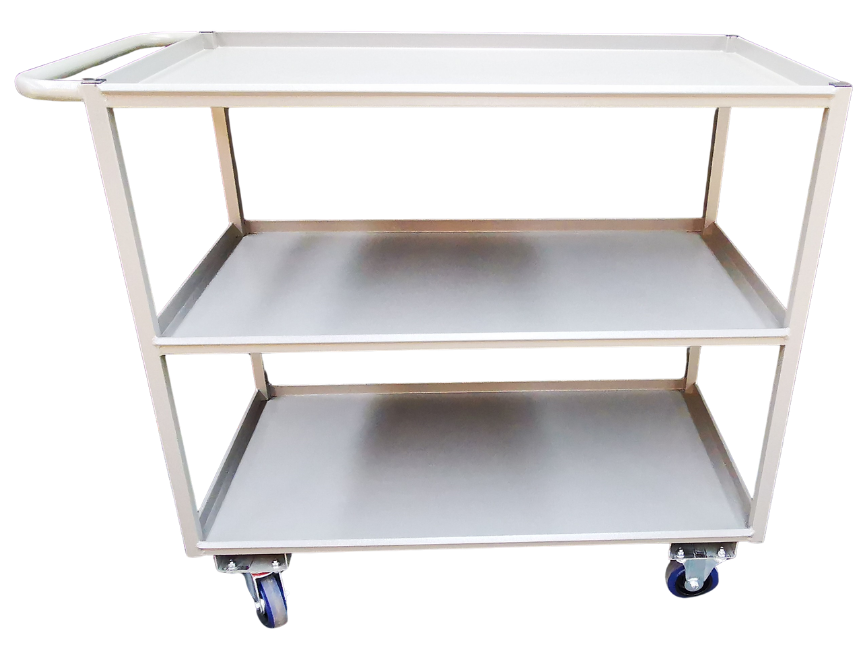

A heavy-duty, industrial-style 3-tier utility trolley designed for transporting goods.
Structure and Shelves
-
- Three Levels: The trolley features three open shelves stacked vertically.
- Tray Design: All three shelves feature raised, tray-like lips to prevent items from sliding off.
- Tray Size – Small: 50 cm x 100 cm x 3 cm High (37 cm space between shelves)
- Courier quoted separately
Used for:
- Warehouses and Logistics: Used for order picking, sorting smaller packages, and moving tools or stock between aisles.
- Workshops and Garages: Serves as a mobile workstation to hold heavy machinery parts, hardware, and automotive tools right next to a project.
- Hospitality and Catering: Moves large batches of food trays, kitchen ingredients, or heavy stacks of tableware in commercial kitchens and hotels.
- Offices and Mailrooms: Distributes heavy boxes of files, paperwork, printer paper, and daily incoming mail across departments.
- TECHNICAL SPECIFICATIONS
Specification Details Overall Dimensions Small: 115 cm (L) × 53 cm (W) x 98 cm (H) Surface Finish Industrial Powder Coated (Durable, chip & corrosion-resistant) Total Safe Load Rating 350 kg (Uniformly Distributed Load) Top/Middle Shelf Load Rating 180 kg – 200 kg UDL Bottom Shelf Load Rating 200 kg+ UDL Shelf Material 1.2mm Cold Rolled Sheet Metal Shelf Perimeter Profile 30mm vertical lip with double triangular overbends for edge stiffness Top/Middle Shelf Reinforcement Underside central full length 60x20x1.2mm thick top-hat section, stitch-welded Bottom Shelf Reinforcement 2 x underslung heavy-duty 2.5mm channel supports Frame Uprights Hot Rolled Square Tubing 25x25x1.6mm Handle Spec Round Tubing (radius bends), set at 950mm height Castor Configuration 4x 100mm Castors (180kg dynamic rating per wheel) Castor Setup 2x Swivel Castors (Rear / Handle end) + 2x Fixed Castors (Front) - Housing: Pressed Steel, Double Ballrace Swivel, Zinc Plated, Dust-proof Seal
- Wheel: Elastic Rubber on Nylon Hub, Roller Bearing (NGR)
- Non-marking, Durable, Excellent Floor Protection
- Good Shock Absorbent, Quiet Operation
- Temperature Range -5 °C 70 °C
- Hardness: 70 ± 3 shore A
Castor Attachment Bolted through underslung channel supports using 4 X M8 Bolts & Nylock Nuts
