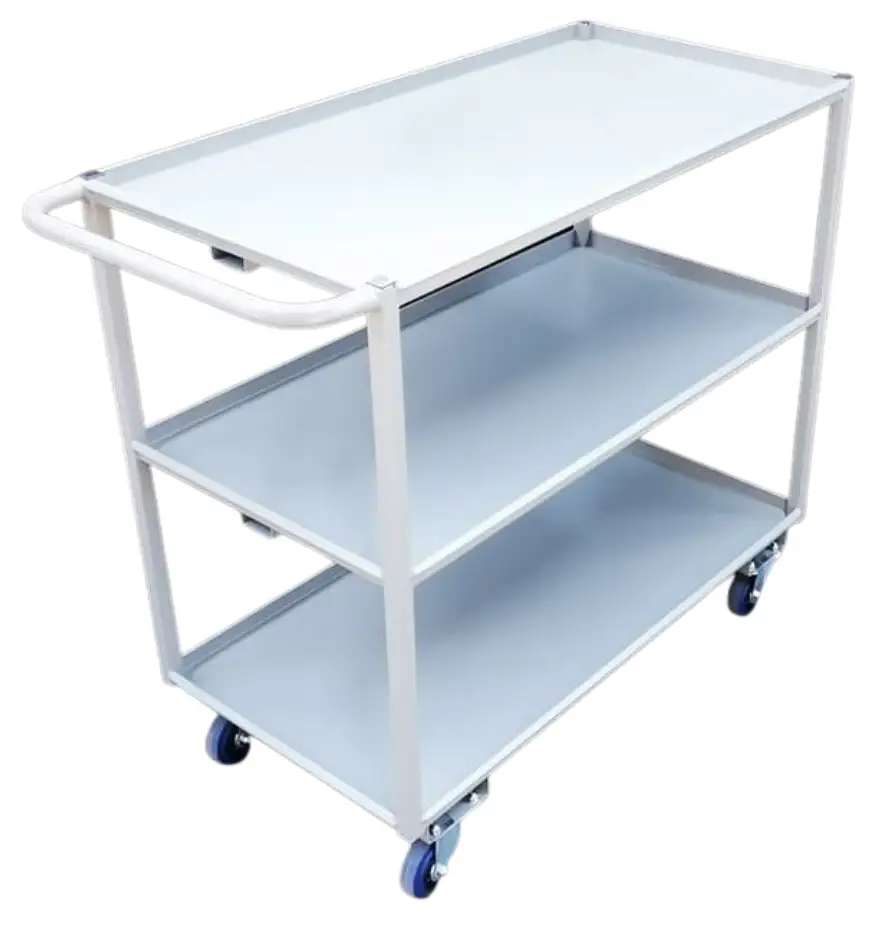

A heavy-duty, industrial-style 3-tier utility trolley designed for transporting goods.
Structure and Shelves
- Three Levels: The trolley features three open shelves stacked vertically.
- Tray Design: All three shelves feature raised, tray-like lips to prevent items from sliding off.
- Tray Size – Large: 60 cm x 112 cm x 97 cm High (37 cm space between shelves)
- Courier quoted separately
Used for:
- Warehouses and Logistics: Used for order picking, sorting smaller packages, and moving tools or stock between aisles.
- Workshops and Garages: Serves as a mobile workstation to hold heavy machinery parts, hardware, and automotive tools right next to a project.
- Hospitality and Catering: Moves large batches of food trays, kitchen ingredients, or heavy stacks of tableware in commercial kitchens and hotels.
- Offices and Mailrooms: Distributes heavy boxes of files, paperwork, printer paper, and daily incoming mail across departments.
- TECHNICAL SPECIFICATIONS
| Specification | Details |
| Overall Dimensions | Large: 115 cm (L) × 54 cm (W) x 98 cm (H) |
| Surface Finish | Industrial Powder Coated (Durable, chip & corrosion-resistant) |
| Total Safe Load Rating | 350 kg (Uniformly Distributed Load) |
| Top/Middle Shelf Load Rating | 180 kg – 200 kg UDL |
| Bottom Shelf Load Rating | 200 kg+ UDL |
| Shelf Material | 1.2mm Cold Rolled Sheet Metal |
| Shelf Perimeter Profile | 30mm vertical lip with double triangular overbends for edge stiffness |
| Top Shelf Reinforcement | Underside central 1.2mm top-hat section, stitch-welded |
| Bottom Shelf Reinforcement | 2x underslung heavy-duty channel supports |
| Frame Uprights | Hot Rolled Square Tubing |
| Handle Spec | Round Tubing (radius bends), set at 950mm height |
| Castor Configuration | 4x 100mm Castors (180kg dynamic rating per wheel) |
| Castor Setup | 2x Swivel Castors (Rear / Handle end) + 2x Fixed Castors (Front)
|
| Castor Attachment | Bolted through underslung channel supports using 4 X M8 Bolts & Nylock Nuts |
