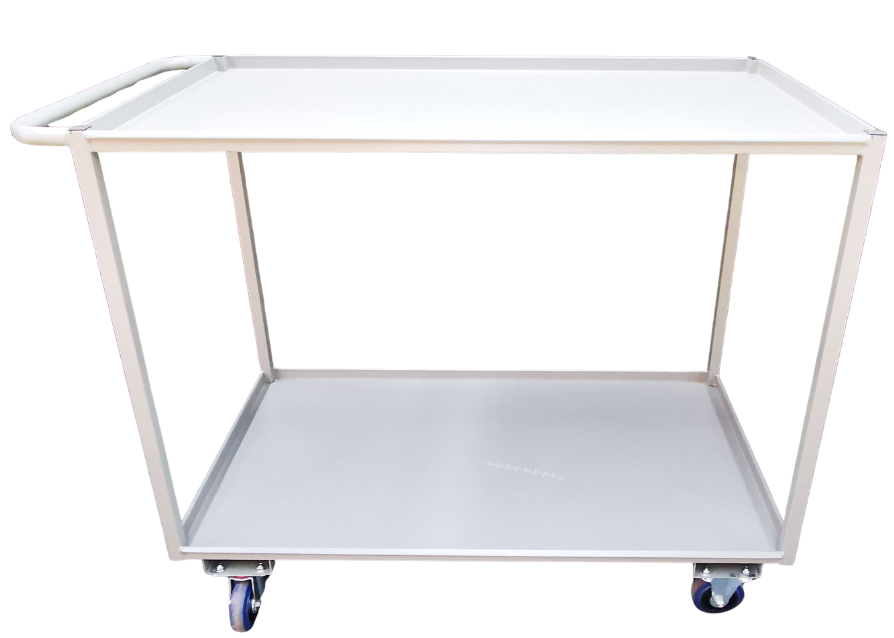

This is a heavy-duty, two-tier industrial picking trolley designed for transporting goods in warehouses, stockrooms, or retail environments.
Key Design Features
- Two-Shelf Configuration: It features an upper and a lower lipped platform to maximize storage capacity while maintaining a manageable height.
- Retaining Lipped Edges: Both shelves have raised perimeter edges to prevent items from sliding off during transit.
- Ergonomic Push Handle: A sturdy, tubular steel handle extends from one side at a comfortable pushing height.
- Open Frame Construction: The minimalist four-post design provides clear, unobstructed access to the bottom shelf from all four sides.
- Tray Size – Large: 60 cm x 112 cm (77 cm space between shelves)
- Courier quoted separately
TECHNICAL SPECIFICATIONS
| Specification | Details |
| Overall Dimensions | Large: 125 cm (L) x 64 cm (W) x 98 cm (H)
Small: 115 cm (L) × 54 cm (W) x 98 cm (H) |
| Surface Finish | Industrial Powder Coated (Durable, chip & corrosion-resistant) |
| Total Safe Load Rating | 350 kg (Uniformly Distributed Load) |
| Top/Middle Shelf Load Rating | 180 kg – 200 kg UDL |
| Bottom Shelf Load Rating | 200 kg+ UDL |
| Shelf Material | 1.2mm Cold Rolled Sheet Metal |
| Shelf Perimeter Profile | 30mm vertical lip with double triangular overbends for edge stiffness |
| Top Shelf Reinforcement | Underside central 1.2mm top-hat section, stitch-welded |
| Bottom Shelf Reinforcement | 2x underslung heavy-duty channel supports |
| Frame Uprights | Hot Rolled Square Tubing |
| Handle Spec | Round Tubing ( radius bends), set at 950mm height |
| Castor Configuration | 4x 100mm Castors (180kg dynamic rating per wheel) |
| Castor Setup | 2x Swivel Castors (Rear / Handle end) + 2x Fixed Castors (Front)
|
| Castor Attachment | Bolted through underslung channel supports using 4 X M8 Bolts & Nylock Nuts |
